Okay then.
So basically the problem is this.
I have a honeycomb core and want to analyze its shear properties.
Experiments have been done according to the ASTM-C273 standards, which gave
us some results about the core. The ones that are of interest to me are the
buckling initiation of the walls, the elastic yield point, and the overall
shape of the buckled walls. We have the results from the experiments and
wanted to move on to creating a FEM/FEA of the same core and see if the
model will be in accordance with the experiments.

So I have created a model of the exact core ( Number of cells, material
properties) without the loading plates( to save computational cost), the
plates have been replaced by boundary conditions where the bottom is fixed
on UX,UY, UZ, and the top nodes create a rigid region (cerig Command) with
a master node to apply a displacement (as of the experiment which is
displacement controlled), MasterNode is fixed in all rotations (ROTZ, ROTY,
ROTZ). So far so good, the problem lies when running the model. Currently,
I wasn't able to make the analysis results match the experimental ones (
Force vs Displacement curves) because the FEM is much stiffer, almost  3
times, than the actual core.

Another error I get when running the analysis is- excessive element
distortion-, this error prevents the analysis from running until the end,
my load is 0.5 mm and it stops at 0.06.

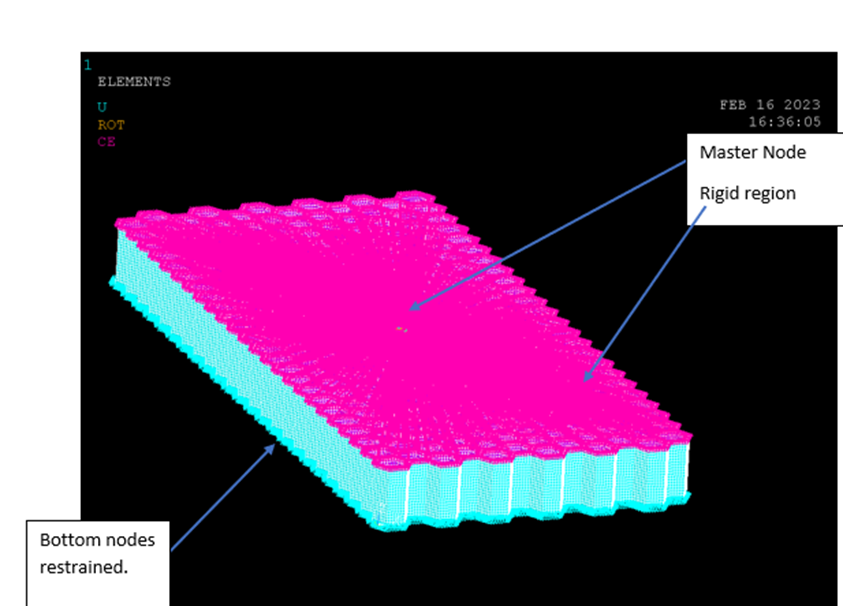

[image: image.png]

Στις Δευ 20 Φεβ 2023 στις 6:43 μ.μ., ο/η Caba, Aaron C (US) <
aaron.caba@baesystems.com> έγραψε:

On 21/02/2023 07:38, AntonisΤ wrote:

Please could you give more detail about the boundary condition at the
bottom of the model; are all DOF fixed or just the minimum number
required to represent the boundary?

--
Martin Liddle
Chesterfield, Derbyshire, UK.

The bottom of the core is restricted in UY, UX, UZ just that nothing else.

Στις Τρί 21 Φεβ 2023 στις 11:46 π.μ., ο/η Martin Liddle <
xansys05@tynecomp.co.uk> έγραψε:

On Tuesday, February 21, 2023, AntonisΤ useratsi98@gmail.com wrote:

This is because you’re replacing the supporting plate by fixed boundary
conditions. This dramatically increases the stiffness in your model. Maybe
you should start thinking about modeling the plate instead of the fixed
displacements. Even if it becomes computationally intensive.

The plate in the actual test can be deformed and it behaves elastically.
However, the fixed supports neglects the elasticity of the plate and hence
your stiffer FEA Model.

Well, that is an old debate. In such cases, try to apply your load more
gradually (increase number of sub-steps or reduce time step). Also, you
might want to improve your mesh quality. Look up the web for the commands
that controls the nonlinear solutions.

Good Luck!
MAG

--

---====
Mohammad A Gharaibeh, Ph.D.
Associate Professor
Department of Mechanical Engineering
The Hashemite University
P.O. Box 330127
Zarqa, 13133, Jordan
Tel: +962 - 5 - 390 3333 Ext. 4771
Fax: +962 - 5 - 382 6348

---====

It may be a good idea to start with a coarser mesh while you debug your model.  You can learn and experiment a lot more with iterations of 1 minute vs. 60 minutes.

Are you running in large displacement (NLGEOM,ON)? Is your expected load-deflection curve linear or do you expect any non-linear geometric behavior?

Are you sure you are applying your load in the same direction (angle) as your experiment?  The measured stiffness will be a function of the load direction.  This might be another reason to model more of the fixture.  You can make the fixture mesh coarse if you use bonded contact between the face sheet and the fixture without adding much to the runtime.

The excessive element distortion may be due to local buckling in the core.  Maybe run a buckling analysis to see what load the honeycomb starts to buckle.

Like someone else said, increase the number of sub-steps (like 1,000 or 10,000) to see if ANSYS can get ‘through’ the difficult spot.

Aaron C. Caba, Ph.D.
Sr. Principal R&D Engineer
BAE Systems, Inc.
4050 Peppers Ferry Road, Radford VA 24143-0100
www.baesystems.comhttp://www.baesystems.com/

From: AntonisΤ useratsi98@gmail.com
Sent: Tuesday, February 21, 2023 2:39 AM
To: Caba, Aaron C (US) aaron.caba@baesystems.com; XANSYS Mailing List Home xansys-temp@list.xansys.org; xansys-temp-request@list.xansys.org
Subject: Re: [Xansys] Re: [External Email] FEA/FEM expert

External Email Alert

This email has been sent from an account outside of the BAE Systems network.
Please treat the email with caution, especially if you are requested to click on a link, decrypt/open an attachment, or enable macros.  For further information on how to spot phishing, access “Cybersecurity OneSpace Page” and report phishing by clicking the button “Report Phishing” on the Outlook toolbar.

Okay then.
So basically the problem is this.
I have a honeycomb core and want to analyze its shear properties. Experiments have been done according to the ASTM-C273 standards, which gave us some results about the core. The ones that are of interest to me are the buckling initiation of the walls, the elastic yield point, and the overall shape of the buckled walls. We have the results from the experiments and wanted to move on to creating a FEM/FEA of the same core and see if the model will be in accordance with the experiments.

So I have created a model of the exact core ( Number of cells, material properties) without the loading plates( to save computational cost), the plates have been replaced by boundary conditions where the bottom is fixed on UX,UY, UZ, and the top nodes create a rigid region (cerig Command) with a master node to apply a displacement (as of the experiment which is displacement controlled), MasterNode is fixed in all rotations (ROTZ, ROTY, ROTZ). So far so good, the problem lies when running the model. Currently, I wasn't able to make the analysis results match the experimental ones ( Force vs Displacement curves) because the FEM is much stiffer, almost  3 times, than the actual core.

Another error I get when running the analysis is- excessive element distortion-, this error prevents the analysis from running until the end, my load is 0.5 mm and it stops at 0.06.
[image.png]
